AFGEL Company Profile

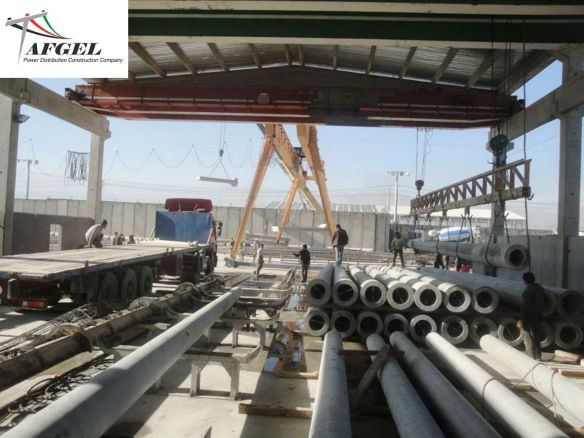

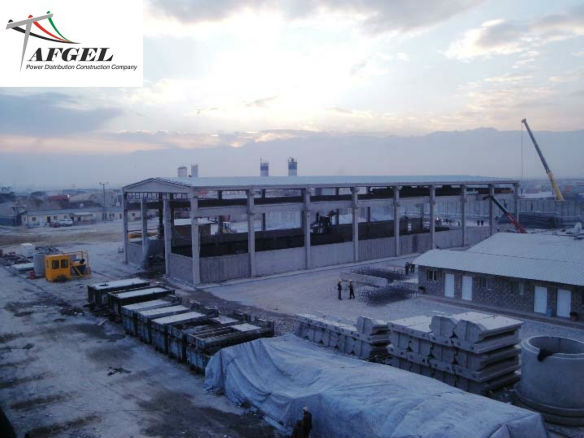

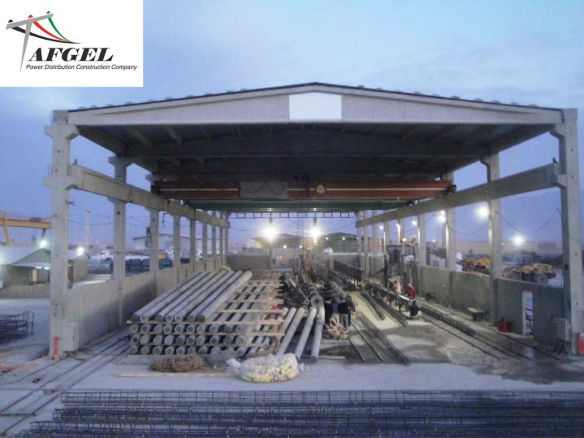

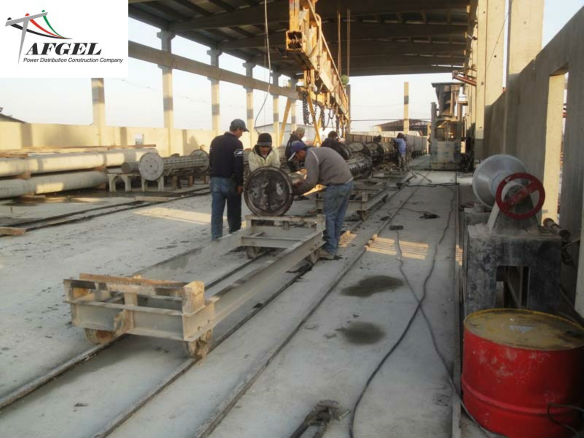

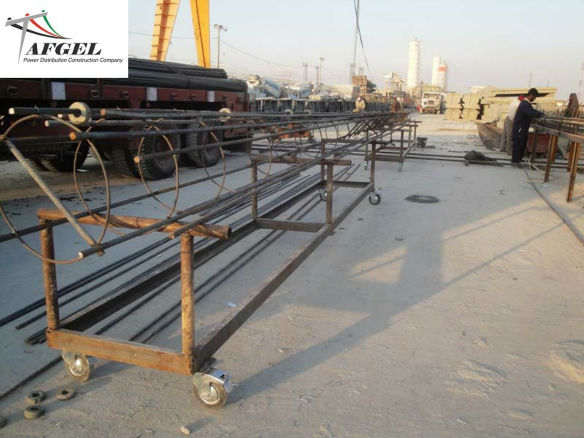

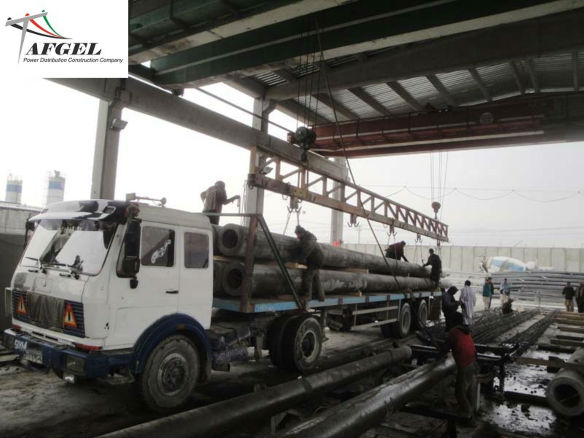

The Afgel Company is engaged in the production of poles for high and low voltage energy transmission lines and lighting in its facilities located at Kabul, Afghanistan, using the Centrifugal Reinforced Concrete Technology.

The poles that we produce are high-strength products and, in addition to the esthetical appearance and long service life, they are preferred by the companies as they require no maintenance and reduce the costs economically.

The Management and production personnel of the Afgel Company is comprised of expert individuals, who have worked in their fields for long years, and technical personnel that utilize their expertise for offering better services.

Our company has adopted quality, trust and punctual work completion as a way of life, and also adopted providing a better, more economical and faster services for our customers. Customer satisfaction is our number 1 priority in our quality policy.

With the above approach, we believe that we shall attain the reputation that we deserve in this sector with our mission of contemporary technology.

"Our company has adopted quality, trust and punctual work completion as a way of life."

General Issues

The transformer poles are indicated by adding the letter (T) in front of the pole symbol..

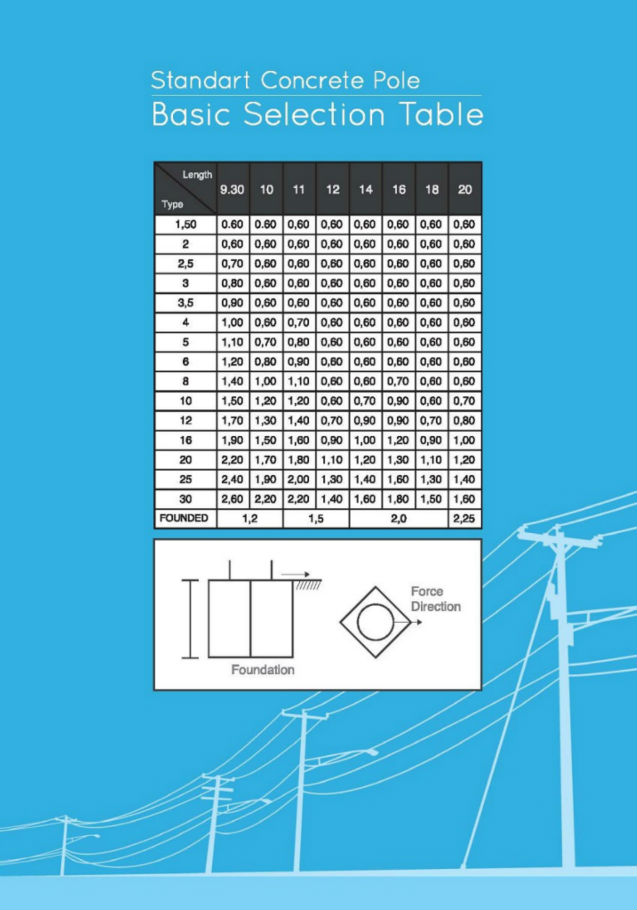

Transformer pole selection: The selection is made according to the tables used for the selection of the Medium Voltage (MV) and Low Voltage (LV) poles as well as the principles for the selection of the power distribution poles.

The transformer platform is sized to carry all types of transformers, up to 250 and 400 kVa (included) and indicated with the symbol (PLT-250 or 400).

Platform for the transformer poles: the platform is installed according to the transformer power, line voltage and sectional dimensions, but not less than 250 cm from the top .

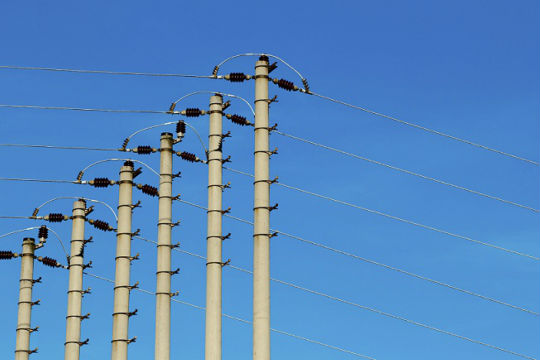

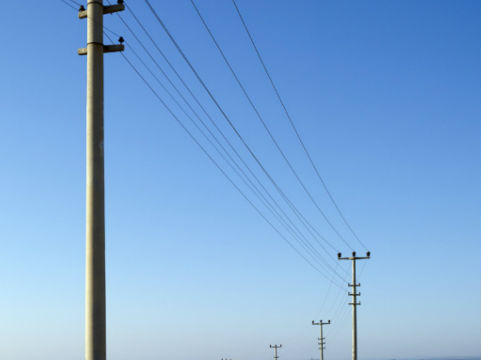

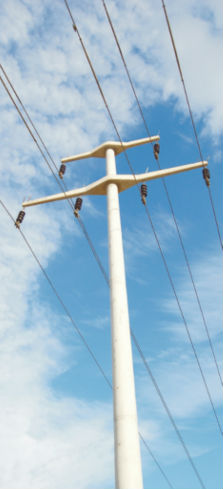

Power Transmission Poles

[Lorem ipsum dolor]

<

>

E-Mail: info@afgel.com

Contact

Download PDF Cataog

Kabul Office:Industrial State (Park Hay Sanaati ), Street No: 5

Kabul / Afghanistan

chanel espadrilles flats buy chanel espadrilles chanel espadrilles for sale

Phone : (0093) 797 694 347

(0093) 799 032 638

Technical Data

Technical Data

Pole Types

The Afgel Company is engaged in the production of poles for high and low voltage energy transmission lines and lighting poles in its facilities located at Kabul, Afghanistan, using the Centrifugal Reinforced Concrete Technology.

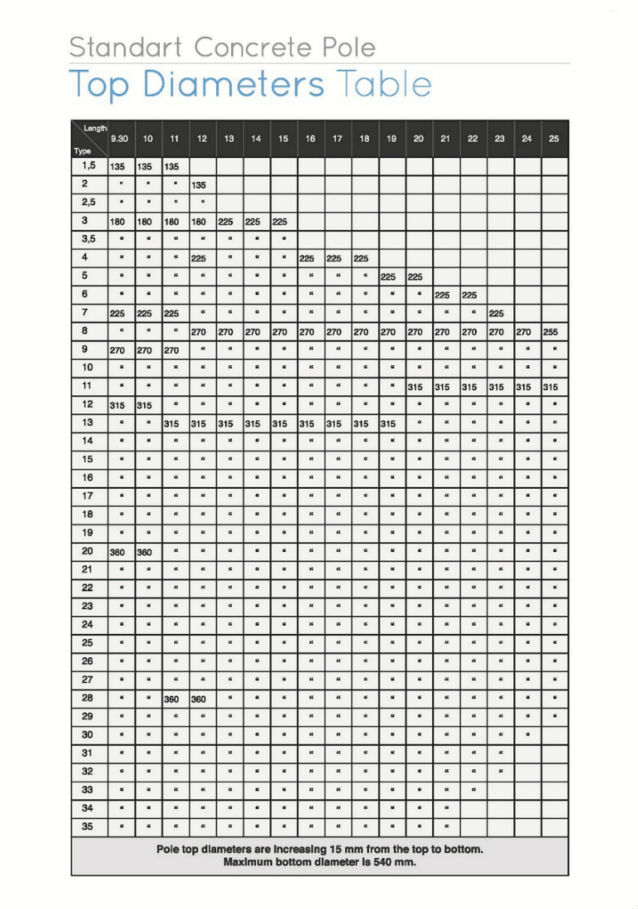

Example ;

Pole top diameter 135 mm

Pole length 9.30 m

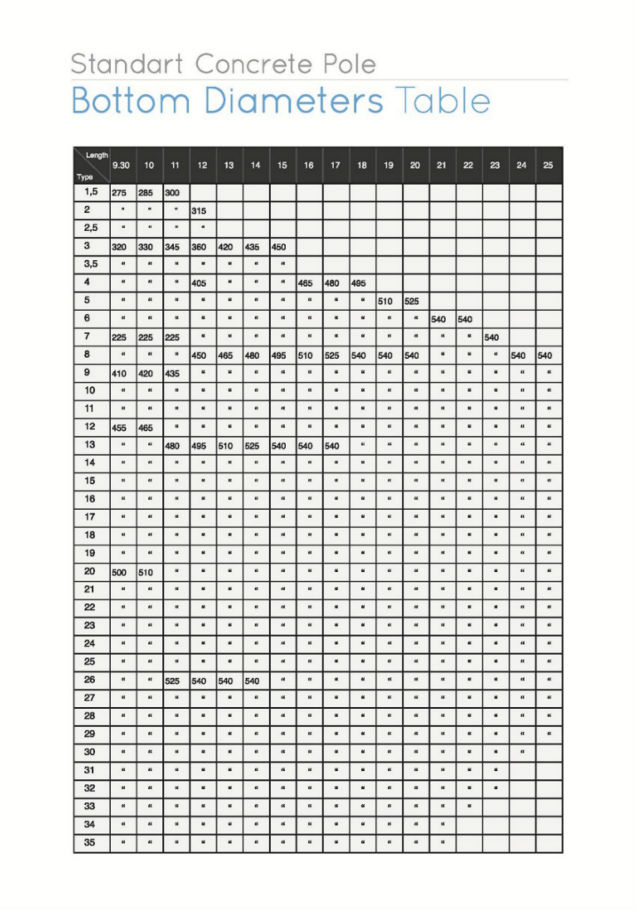

Pole bottom diameter 275 mm

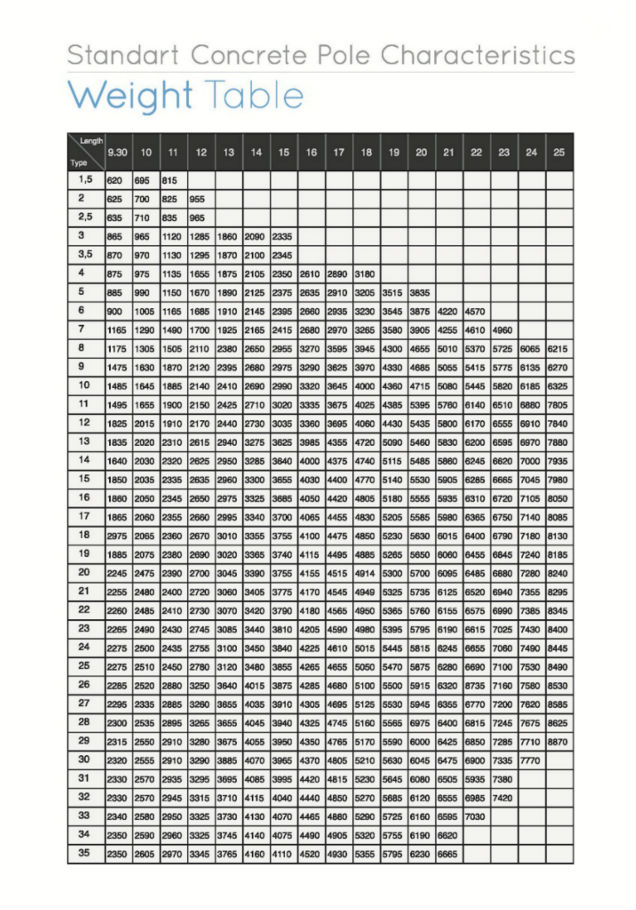

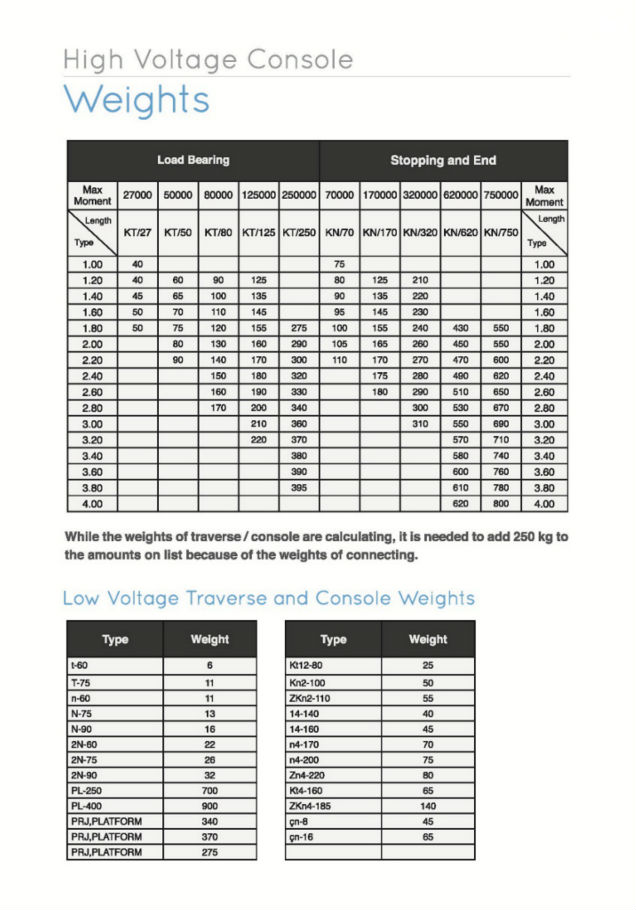

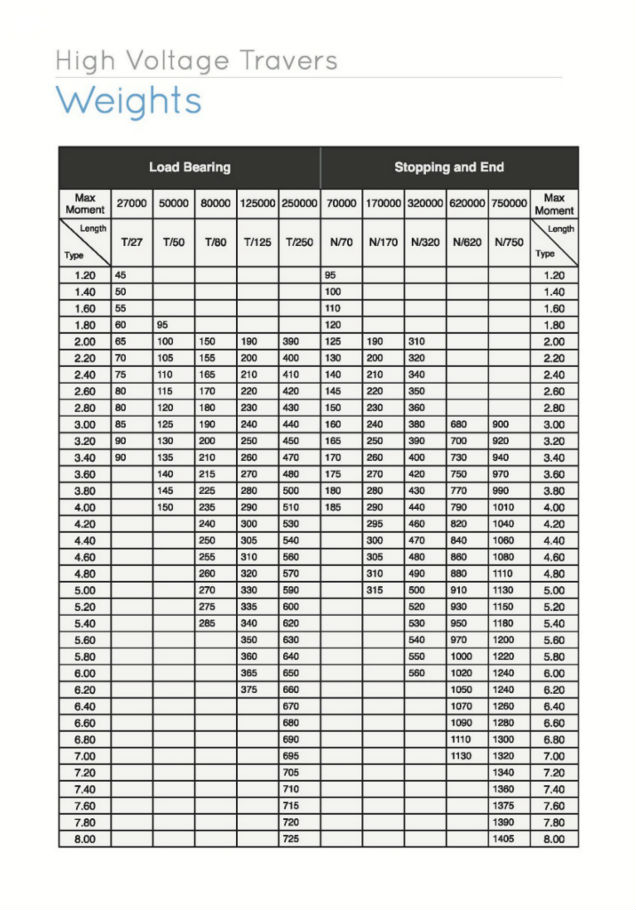

Weights

Depend on the concrete product tolerances and used as the basis for pricing the transportation and installation charges.

Grounding Nuts

The m ½ grounding nut welded to the main equipment is located at the level of the traverses from the top and (~+0.20m) above the foundation at the bottom of the pole.

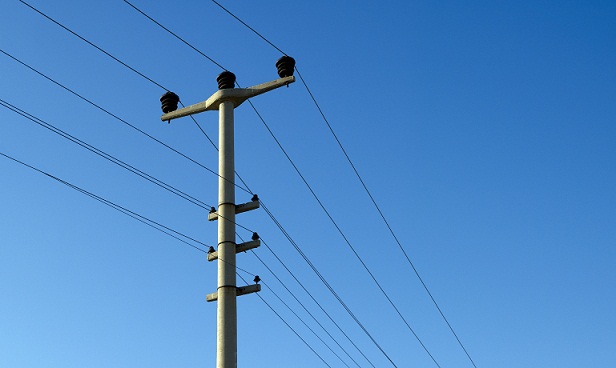

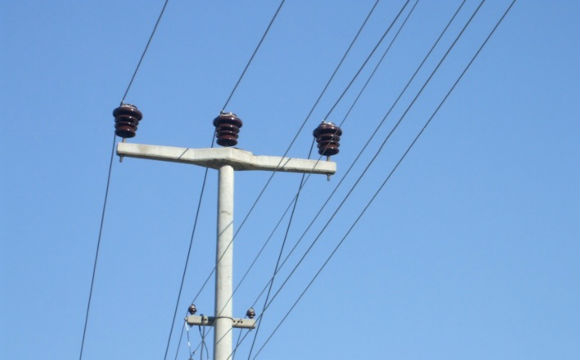

Insulator Nut

As the middle conductor has to be fixed on top of the pole in the medium voltage lines, a 1” insulator nut is welded on top of the pole to secure the

insulator bar.

Ladder Nut

As an option the poles may be fitted with ladder nuts for installing portable rungs with 50 cm intervals. The supplemental charges for the foregoing is

calculated according to the pole length and quoted.

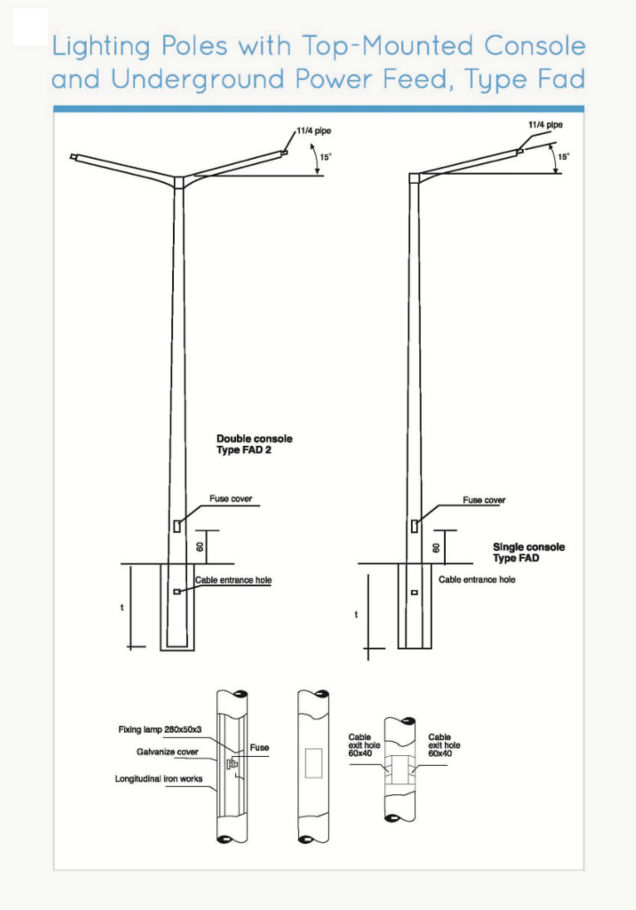

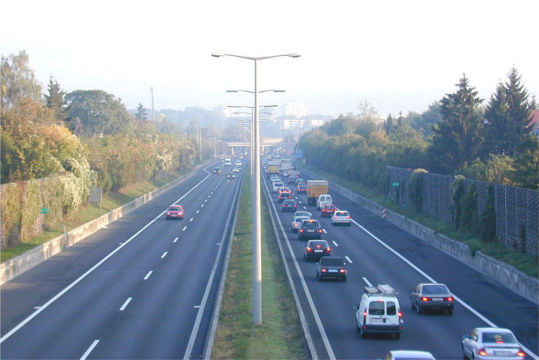

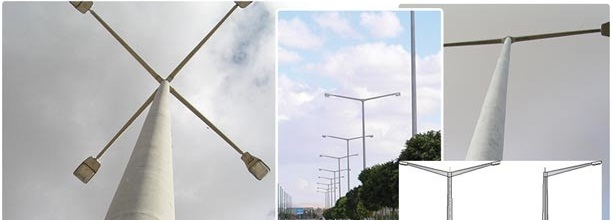

Lighting Console Installation

When installation of lighting consoles on the concrete poles is desired, the height of the light, console type and the cable connection type (internal and external) has to be indicated. Separate lighting poles have to be manufactured for lighting purposes.

Type-Tip Strength

The poles are marked to show their Type and Length. The tip strength of the pole is calculated by multiplying the type mark by 100 kg. For example, a 2x12 pole means a tip strength of 2x100 = 200 kg tip strength and 12 meters of length.

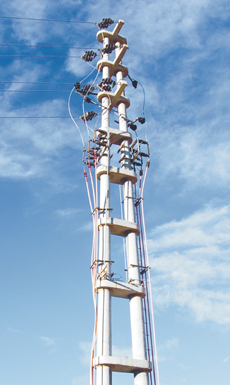

Dual Poles

Dual poles are used when non-standard pole strength is required. The tip strength of a dual-pole is 4 to 7 times higher than a single pole used in one

direction and two times higher in the other direction.

Special Length Poles

The poles that are longer than the standard lengths given in the list are specially manufactured.
